// 3D vector
class Vector3
{
public:
    Vector3(float fx, float fy, float fz)
        :x(fx), y(fy), z(fz)
    {
    }

    // Subtract
    Vector3 operator - (const Vector3& v) const
    {
        return Vector3(x - v.x, y - v.y, z - v.z) ;
    }

    // Dot product
    float Dot(const Vector3& v) const
    {
        return x * v.x + y * v.y + z * v.z ;
    }

    // Cross product
    Vector3 Cross(const Vector3& v) const
    {
        return Vector3(
            y * v.z - z * v.y,
            z * v.x - x * v.z,
            x * v.y - y * v.x ) ;
    }

public:
    float x, y, z ;
};

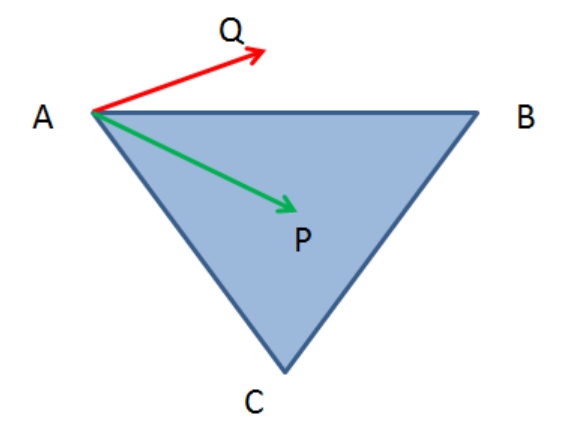

// Determine whether two vectors v1 and v2 point to the same direction
// v1 = Cross(AB, AC)
// v2 = Cross(AB, AP)
bool SameSide(Vector3 A, Vector3 B, Vector3 C, Vector3 P)
{
    Vector3 AB = B - A ;
    Vector3 AC = C - A ;
    Vector3 AP = P - A ;

    Vector3 v1 = AB.Cross(AC) ;
    Vector3 v2 = AB.Cross(AP) ;

    // v1 and v2 should point to the same direction
    return v1.Dot(v2) >= 0 ;
}

// Same side method// Determine whether point P in triangle ABC
bool PointinTriangle1(Vector3 A, Vector3 B, Vector3 C, Vector3 P)
{
    return SameSide(A, B, C, P) &&
        SameSide(B, C, A, P) &&
        SameSide(C, A, B, P) ;
}

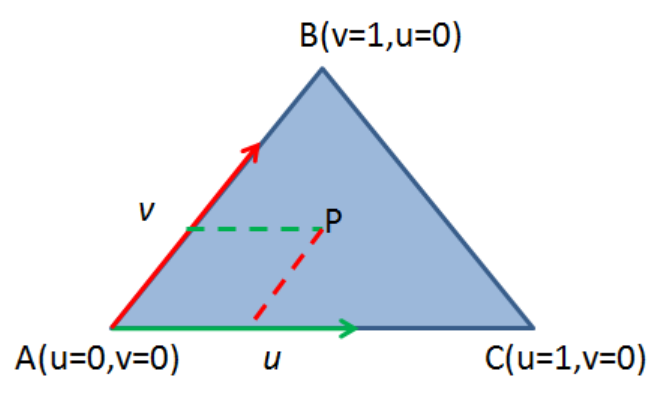

// Determine whether point P in triangle ABC
bool PointinTriangle(Vector3 A, Vector3 B, Vector3 C, Vector3 P)
{
    Vector3 v0 = C - A ;
    Vector3 v1 = B - A ;
    Vector3 v2 = P - A ;

    float dot00 = v0.Dot(v0) ;
    float dot01 = v0.Dot(v1) ;
    float dot02 = v0.Dot(v2) ;
    float dot11 = v1.Dot(v1) ;
    float dot12 = v1.Dot(v2) ;

    float inverDeno = 1 / (dot00 * dot11 - dot01 * dot01) ;

    float u = (dot11 * dot02 - dot01 * dot12) * inverDeno ;
    if (u < 0 || u > 1) // if u out of range, return directly
    {
        return false ;
    }

    float v = (dot00 * dot12 - dot01 * dot02) * inverDeno ;
    if (v < 0 || v > 1) // if v out of range, return directly
    {
        return false ;
    }

    return u + v <= 1 ;
}

#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>
#include <glm/gtc/type_ptr.hpp>
#include <glm/gtx/intersect.hpp>
#include <glm/gtx/transform.hpp>
#include <iostream>

// 检查射线与球体的交点
bool intersectRaySphere(
    const glm::vec3& rayOrigin,
    const glm::vec3& rayDirection,
    const glm::vec3& sphereCenter,
    float sphereRadius,
    glm::vec3& intersectionPoint)
{
    float t0, t1;  // 解

    glm::vec3 L = sphereCenter - rayOrigin;
    float tca = glm::dot(L, rayDirection);
    if (tca < 0) return false;
    float d2 = glm::dot(L, L) - tca * tca;
    float radius2 = sphereRadius * sphereRadius;
    if (d2 > radius2) return false;
    float thc = sqrt(radius2 - d2);
    t0 = tca - thc;
    t1 = tca + thc;

    if (t0 > t1) std::swap(t0, t1);

    if (t0 < 0) {
        t0 = t1;  // 如果 t0 是负数，则使用 t1
        if (t0 < 0) return false;  // 如果 t1 也小于零，则射线在球体之后
    }

    intersectionPoint = rayOrigin + t0 * rayDirection;
    return true;
}

int main() {
    // 示例参数
    glm::vec3 rayOrigin(0.0f, 0.0f, 5.0f);
    glm::vec3 rayDirection(0.0f, 0.0f, -1.0f);
    glm::vec3 sphereCenter(0.0f, 0.0f, 0.0f);
    float sphereRadius = 1.0f;

    // 检查射线与球体的交点
    glm::vec3 intersectionPoint;
    if (intersectRaySphere(rayOrigin, rayDirection, sphereCenter, sphereRadius, intersectionPoint)) {
        std::cout << "Intersection Point: " << glm::to_string(intersectionPoint) << std::endl;
    } else {
        std::cout << "No intersection" << std::endl;
    }

    return 0;
}
